DolphinDB Data Access Interface Development

Example 1: Users can access all data in the table.

login("admin", "123456")
def query(startDate, endDate, cols="*", security=NULL) {
	whereConditions = [<date between startDate:endDate>]
	if (typestr(security) <> "VOID") {
		whereConditions.append!(<SecurityID in security>)
	}
	return eval(sql(select=sqlCol(cols), from=loadTable("dfs://stock", "factor"), where=whereConditions))
}
addFunctionView(query)
grant("testGroup1", VIEW_EXEC, "query")

Parameters

• startDate: Start date

• endDate: End date

• cols: Column names; defaults to all columns

• security: Security code; defaults to all security codes

Example 2: Users can access only the most recent year of data.

login("admin", "123456")
def queryRecentYear(startDate=NULL, endDate=NULL, cols="*", security=NULL) {
	start = temporalAdd(date(now()), -1, "y")
	end = date(now())
	if (startDate == NULL) { date0 = start }
	else if (startDate < start) { throw("Not granted to read data before " + start) }
	else { date0 = startDate }
	if (endDate == NULL) { date1 = end }
	else if (endDate > end) { throw("Not granted to read data after " + end) }
	else { date1 = endDate }
	whereConditions = [<date between date0:date1>]
	if (typestr(security) <> "VOID") {
		whereConditions.append!(<SecurityID in security>)
	}
	return eval(sql(select=sqlCol(cols), from=loadTable("dfs://stock", "factor"), where=whereConditions))
}
addFunctionView(queryRecentYear)
grant("testGroup1", VIEW_EXEC, "queryRecentYear")

Parameters

• startDate: Start date; defaults to one year ago

• endDate: End date; defaults to today

• cols: Column names; defaults to all columns

• security: Security code; defaults to all security codes

Example 3: Users can access only the first 10 columns of data in the table.

login("admin", "123456")
def queryFirst10Col(startDate, endDate, cols=NULL, security=NULL) {
	grantedCols = loadTable("dfs://stock", "factor").schema()['colDefs']['name'][:10]
	notGranted = not(cols in grantedCols)
	if (typestr(cols) == "VOID") { col = grantedCols }
	else if (sum(notGranted) > 0) {	throw("Not granted to read columns " + toStdJson(distinct(cols[notGranted]))) }
	else { col = cols }
	whereConditions = [<date between startDate:endDate>]
	if (typestr(security) <> "VOID") {
		whereConditions.append!(<SecurityID in security>)
	}
	return eval(sql(select=sqlCol(col), from=loadTable("dfs://stock", "factor"), where=whereConditions))
}
addFunctionView(queryFirst10Col)
grant("testGroup1", VIEW_EXEC, "queryFirst10Col")

Parameters

• startDate: Start date

• endDate: End date

• cols: Column names; defaults to all columns you are allowed to access

• security: Security code; defaults to all security codes

Example 4: Users can access only certain columns of data from the year 2020 onwards.

login("admin", "123456")
def queryCond(startDate, endDate, cols=NULL, security=NULL) {
	grantedCols = `SecurityID`date`time`col46`col47`col48`col49`col50
	notGranted = not(cols in grantedCols)
	if (typestr(cols) == "VOID") { col = grantedCols }
	else if (sum(notGranted) > 0) {	throw("Not granted to read columns " + toStdJson(distinct(cols[notGranted]))) }
	else { col = cols }
	if (startDate < 2020.01.01) {
		throw("Not granted to read data before 2020")
	}
	if (startDate < temporalAdd(endDate, -1, "y")) {
		throw("Time duration exceeds 1 year. Please change the dates.")
	}
	whereConditions = [<date between startDate:endDate>]
	if (typestr(security) <> "VOID") {
		whereConditions.append!(<SecurityID in security>)
	}
	return eval(sql(select=sqlCol(col), from=loadTable("dfs://stock", "factor"), where=whereConditions))
}
addFunctionView(queryCond)
grant("testGroup1", VIEW_EXEC, "queryCond")

Parameters

• startDate & endDate: Start date and end date; the interval must not exceed one year

• cols: Column names; defaults to all columns you are allowed to access

• security: Security code; defaults to all security codes

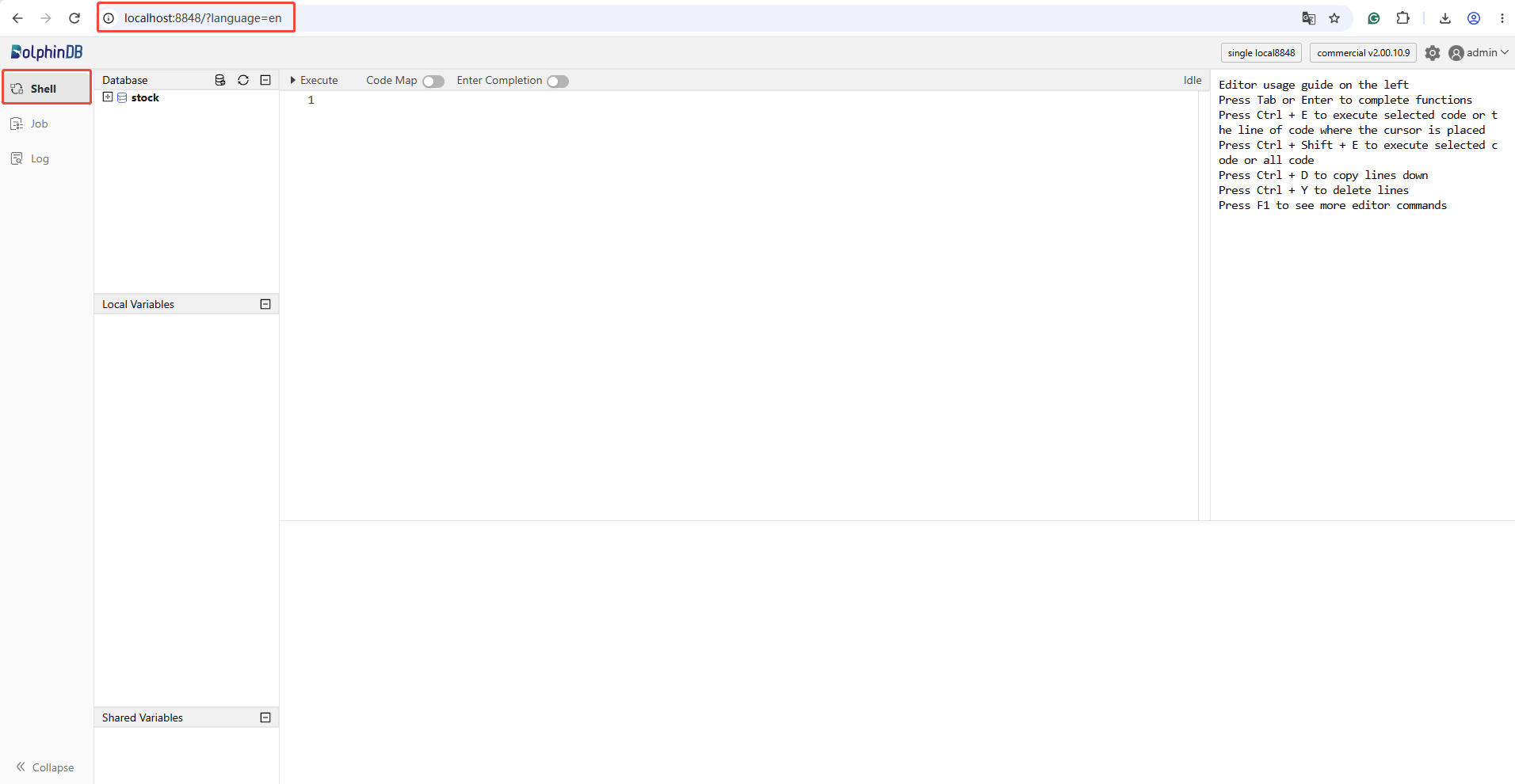

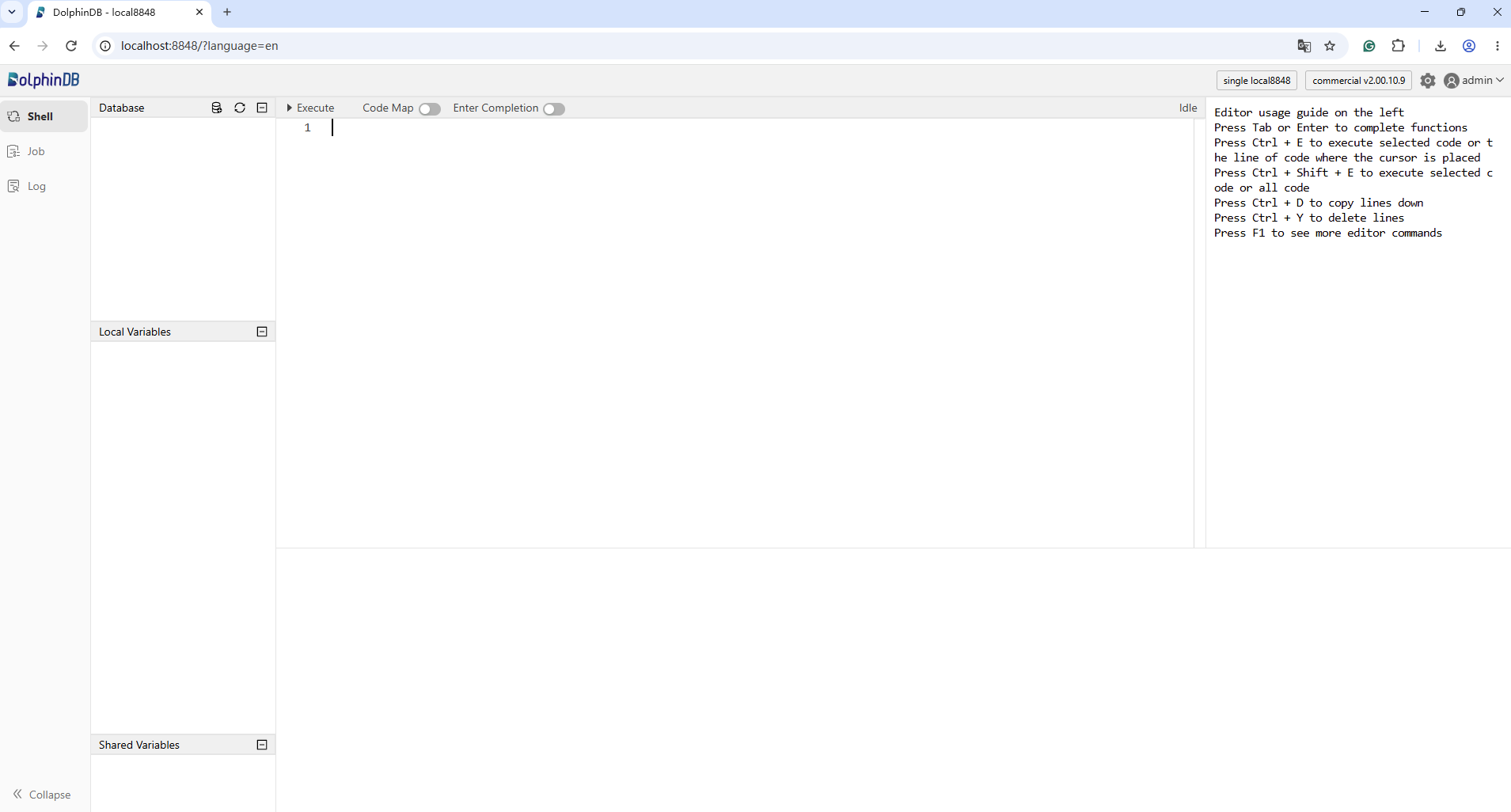

This section introduces how to install and use DolphinDB IDEs. See GUI Clients for details.

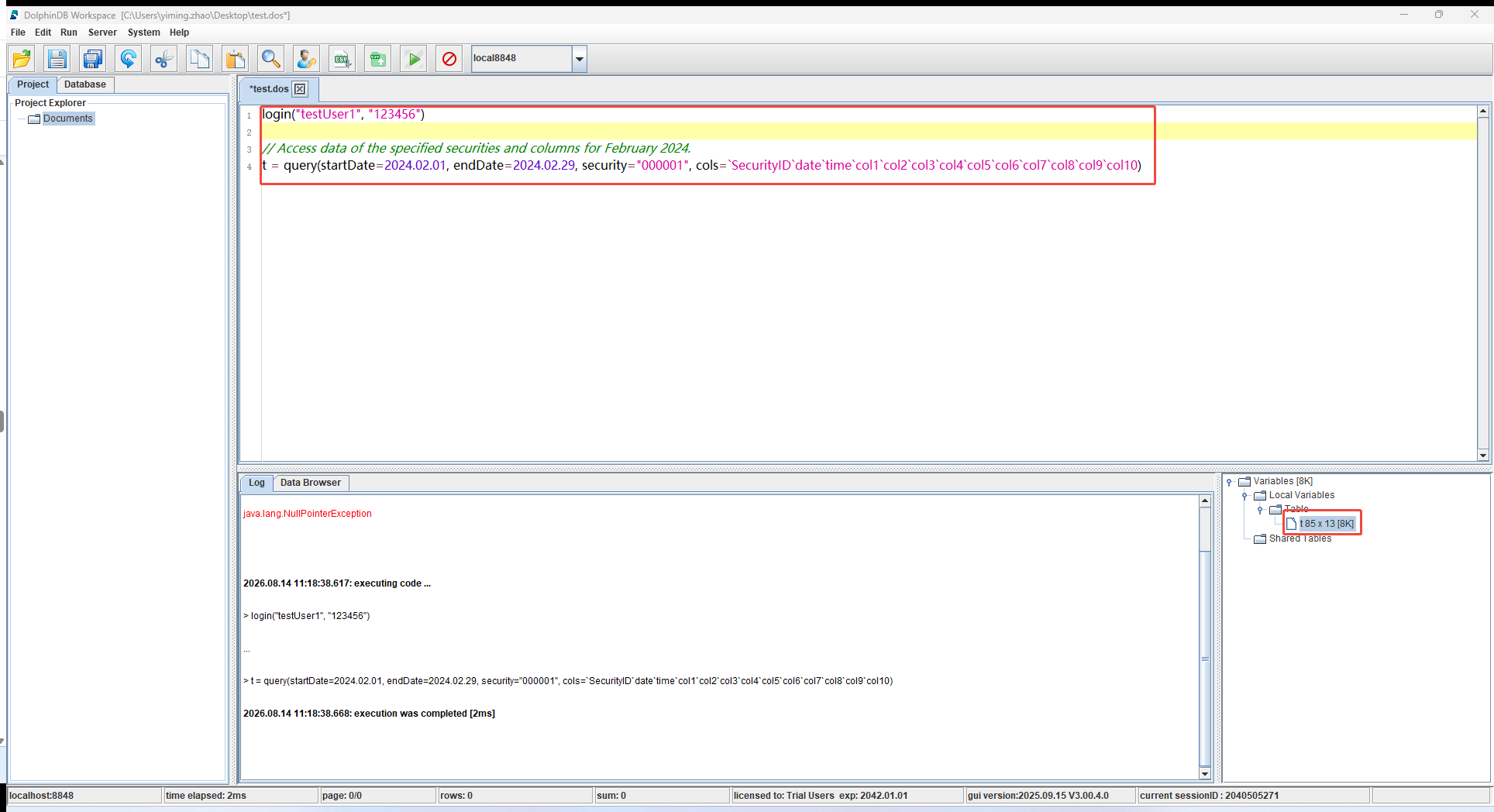

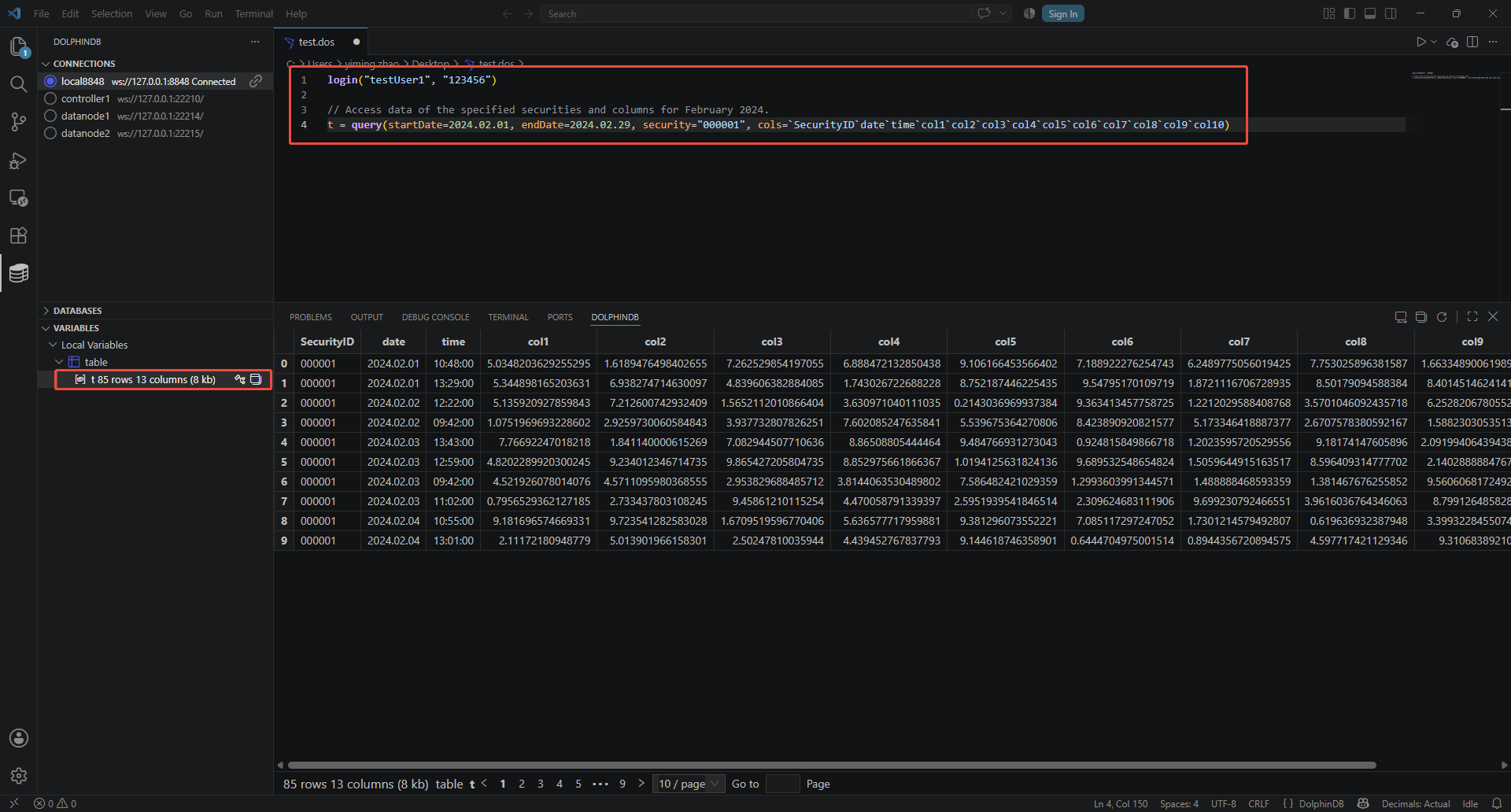

• Log in to the DolphinDB server using the testUser1 account.

login("testUser1", "123456")

• Access data using the full-table access interface.

// Access all table data.
t = query(startDate=2015.01.01, endDate=2024.12.31)

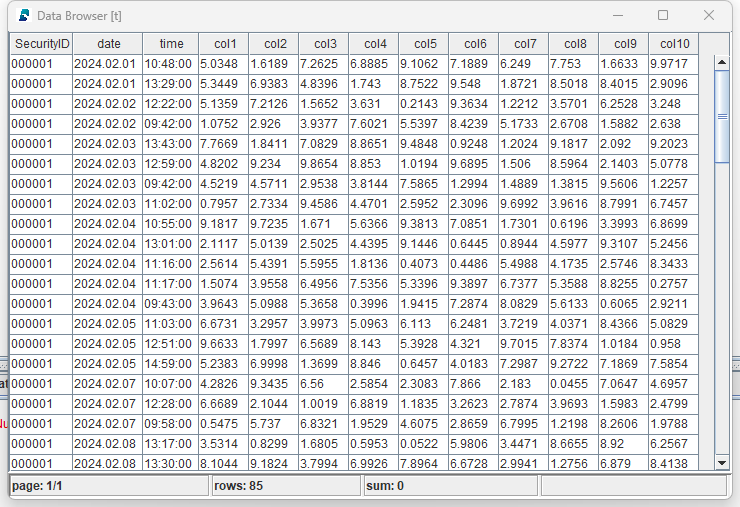

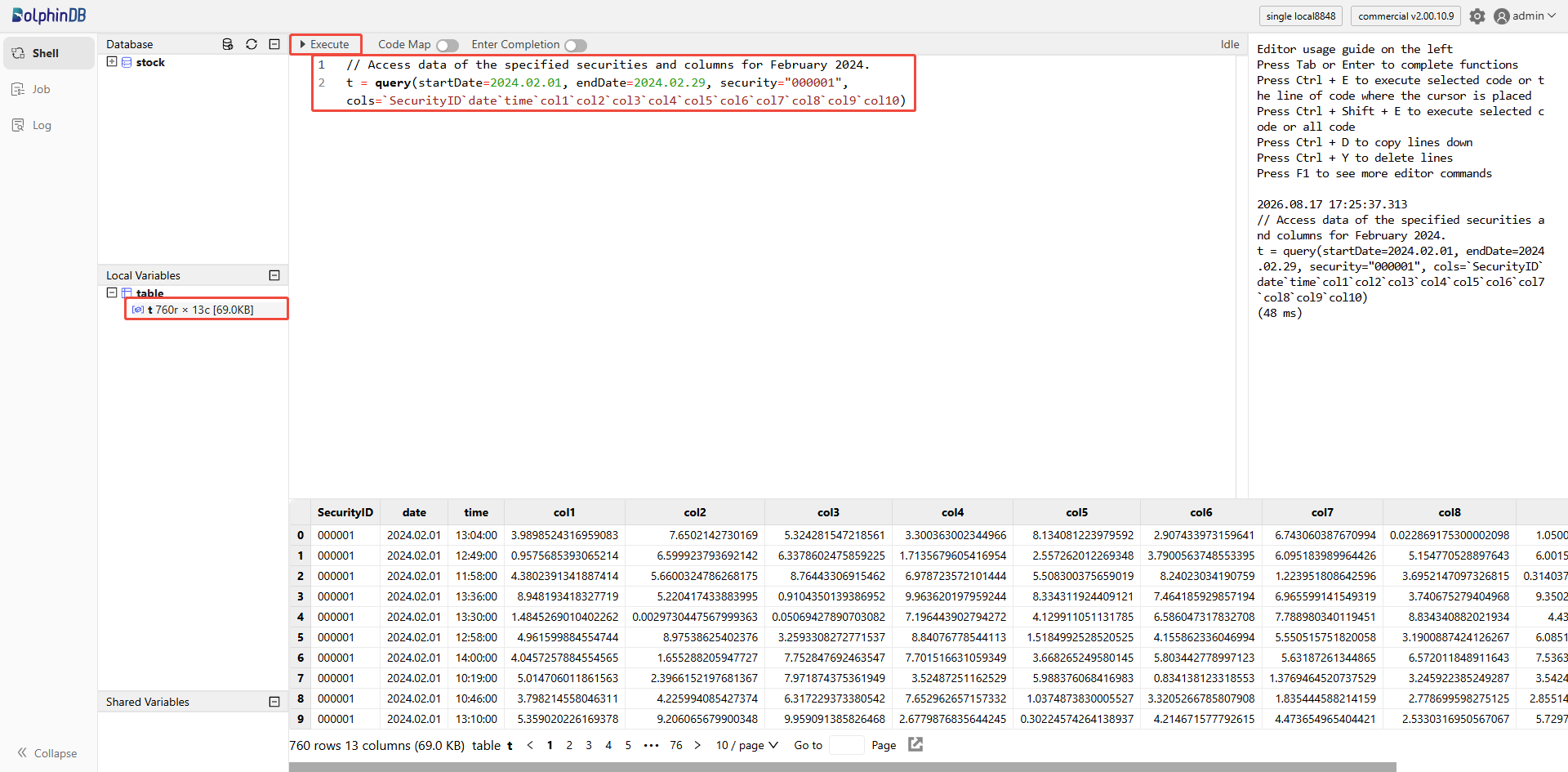

// Access data of the specified securities and columns for February 2024.
t = query(startDate=2024.02.01, endDate=2024.02.29, security="000001", cols=`SecurityID`date`time`col1`col2`col3`col4`col5`col6`col7`col8`col9`col10)

• Access data using the row-level access interface.

// Access all data from the last year.
t = queryRecentYear()

// Access data from a specified start date and specified columns.
t = queryRecentYear(startDate=2023.07.10, cols=`SecurityID`date`time`col2`col3)

If the query time range exceeds the last year, it throws the following error:

t = queryRecentYear(2023.07.01, , ["SecurityID","date","time","col2","col3"]) => queryRecentYear: throw "Not granted to read data before " + start => Not granted to read data before 2023.07.05

• Access data using the column-level access interface.

// Access all accessible columns for the specified securities in 2023.
t = queryFirst10Col(startDate=2023.01.01, endDate=2023.12.31, security=`000008`000009`000010)

// Access data of the specified columns for December 2022.
t = queryFirst10Col(startDate=2022.12.01, endDate=2022.12.31, cols=`SecurityID`date`time`col4`col5`col6)

• Access data using the row-and-column-level access interface.

// Access all accessible columns for January 2021.
t = queryCond(startDate=2021.01.01, endDate=2021.01.31)

// Access data of the specified columns in 2021.
t = queryCond(startDate=2021.01.01, endDate=2021.12.31, cols=`SecurityID`date`time`col47`col48`col49)

dolphindb is the official Python API for DolphinDB. It connects the DolphinDB server and Python client, enabling bidirectional data transfer and script execution. The DolphinDB API allows seamless data transfer and script execution between the DolphinDB server and Python client. Using the DolphinDB API, you can leverage DolphinDB's powerful computing and storage capabilities to manipulate, analyze and model data within a Python environment.

Follow Installing DolphinDB Python API to install the Python API. Create a new *.ipynb* file in Jupyter Notebook to view data with the Python API.

dolphindb provides the session() and run() interfaces for quick interaction between Python and the DolphinDB server. This allows users to call the data access interfaces wrapped as function views in Chapter 2. The examples below are implemented using the native Python API interfaces.

• Create a session using the Python API and log in as user testUser2.

  import pandas as pd
  import dolphindb as ddb

  #Create a session and log in.

  s = ddb.session("127.0.0.1", 8848, 'testUser2', '123456')

• Access data using the full-table access interface.

  #Access all table data.

  startDate = np.datetime64("2015-01-01", "D")
  endDate = np.datetime64("2024-12-31", "D")
  cols = "*"
  df = s.run("query", startDate, endDate, cols)

• Access data using the row-level access interface.

  #Access all data from the last year.

  startDate = np.datetime64("2024-07-01", "D")
  df = s.run("queryRecentYear", startDate)

• Access data using the column-level access interface.

  # Access all accessible columns for the specified securities in 2023.
  startDate = np.datetime64("2023-01-01", "D")
  endDate = np.datetime64("2023-12-31", "D")
  cols = None
  security = np.array(['000008', '000009', '000010'])
  df = s.run("queryFirst10Col", startDate, endDate, cols, security)

• Access data using the row-and-column-level access interface.

  #Access data of the specified columns in 2021.

  startDate = np.datetime64("2021-01-01", "D")
  endDate = np.datetime64("2021-12-31", "D")
  cols = np.array(['SecurityID', 'date', 'time', 'col47', 'col48', 'col49'])
  df = s.run("queryCond", startDate, endDate, cols)

To make data access interfaces easier to use, you can further wrap the native interfaces provided by the Python API. This tutorial provides simple examples to illustrate wrapping approaches, helping you improve development efficiency.

• The query.py file contains a simple example of wrapping the native interfaces. It must be placed in the same directory as your query code (*.py or *.ipynb files) for importing.

#!/usr/bin/env python
# coding: utf-8

def query(session, startDate, endDate, cols='"*"', security='NULL'):
 script = 'query({}, {}, {}, {})'.format(startDate, endDate, cols, security)
 return session.run(script)

def queryRecentYear(session, startDate='NULL', endDate='NULL', cols='"*"', security='NULL'):
 script = 'queryRecentYear({}, {}, {}, {})'.format(startDate, endDate, cols, security)
 return session.run(script)

def queryFirst10Col(session, startDate, endDate, cols='NULL', security='NULL'):
 script = 'queryFirst10Col({}, {}, {}, {})'.format(startDate, endDate, cols, security)
 return session.run(script)

def queryCond(session, startDate, endDate, cols='NULL', security='NULL'):
 script = 'queryCond({}, {}, {}, {})'.format(startDate, endDate, cols, security)
 return session.run(script)

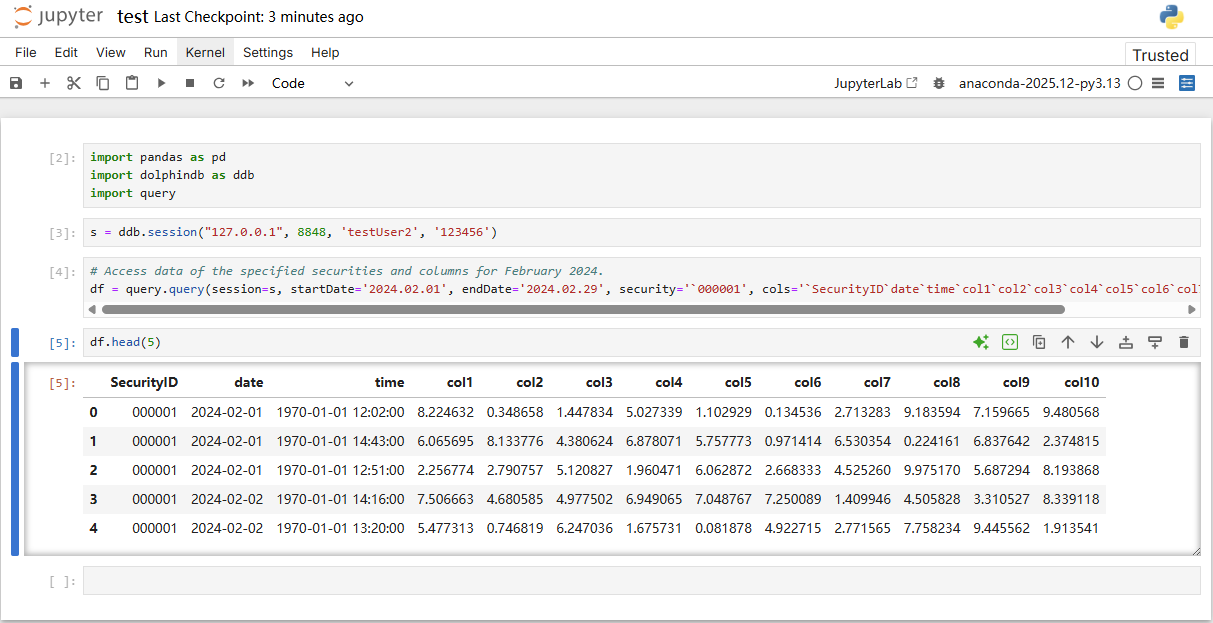

Next, we provide examples of data access interfaces that are wrapped using the Python client.

• Create a session using the Python API and log in as user testUser2.

  import pandas as pd
  import dolphindb as ddb
  import query

  # Create a session and log in.
  s = ddb.session("127.0.0.1", 8848, 'testUser2', '123456')

• Access data using the full-table access interface.

  # Access all table data.
  df = query.query(session=s, startDate='2015.01.01', endDate='2024.12.31')

  # Access data of the specified securities and columns for February 2024.
  df = query.query(session=s, startDate='2024.02.01', endDate='2024.02.29', security='`000001', cols='`SecurityID`date`time`col1`col2`col3`col4`col5`col6`col7`col8`col9`col10')

• Access data using the row-level access interface.

  # Access all data from the last year.
  df = query.queryRecentYear(session=s)

  # Access data from a specified start date and specified columns.
  df = query.queryRecentYear(session=s, startDate='2024.07.01', cols='`SecurityID`date`time`col2`col3')

• Access data using the column-level access interface.

  # Access all accessible columns for the specified securities in 2023.
  df = query.queryFirst10Col(session=s, startDate='2023.01.01', endDate='2023.12.31', security='`000008`000009`000010')

  # Access data of the specified columns for December 2022.
  df = query.queryFirst10Col(session=s, startDate='2022.12.01', endDate='2022.12.31', cols='`SecurityID`date`time`col4`col5`col6')

• Access data using the row-and-column-level access interface.

  # Access all accessible columns for January 2021.
  df = query.queryCond(session=s, startDate='2021.01.01', endDate='2021.01.31')

  # Access data of the specified columns in 2021.
  df = query.queryCond(session=s, startDate='2021.01.01', endDate='2021.12.31', cols='`SecurityID`date`time`col47`col48`col49')

To help you quickly extend the design of the data access interfaces, this tutorial provides examples of several common APIs. These are called via the standard RPC interface run(funcName, args...). You can wrap the standard interfaces for a more convenient data access interface.

• C++ API

  # Create a session and log in.
  DBConnection conn;
  conn.connect("127.0.0.1", 8848, "testUser2", "123456");

  # Access all table data.
  ConstantSP startDate = Util::createDate(2015, 1, 1);
  ConstantSP endDate = Util::createDate(2024, 12, 31);
  ConstantSP cols = Util::createString("*");
  vector<ConstantSP> funcArgs = {startDate, endDate, cols};
  auto tb = conn.run("query", funcArgs);

• Java API

  //Create a session and log in.
  DBConnection conn= new DBConnection();
  conn.connect("127.0.0.1", 8848, "testUser2", "123456");


  //Access all table data.
  BasicDate startDate = new BasicDate(LocalDate.of(2015,1,1));
  BasicDate endDate = new BasicDate(LocalDate.of(2024,12,31));
  BasicString cols = new BasicString("*");
  List<Entity> funcArgs = Arrays.asList(startDate, endDate, cols);
  BasicTable tb = (BasicTable)conn.run("query", funcArgs);

• C# API

  // Create a session and log in.
  DBConnection conn = new DBConnection();
  conn.connect("127.0.0.1", 8848, "testUser2", "123456");

  // Access all table data.
  BasicDate startDate = new BasicDate(new DateTime(2015, 1, 1));
  BasicDate endDate = new BasicDate(new DateTime(2024, 12, 31));
  BasicString cols = new BasicString("*");
  List<IEntity> funcArgs = new List<IEntity> { startDate, endDate, cols };
  BasicTable tb = (BasicTable)conn.run("query", funcArgs);

• JavaScript API

  //Create a session and log in.
  let ddb = new DDB('ws://127.0.0.1:8848', { username: 'testUser2', password: '123456' })
  await ddb.connect()

  //Access all table data.
  const start = '2015.01.01'
  const end = '2024.12.31'
  const tb = await ddb.execute(`query(${start}, ${end}, "*")`)

When accessing data via a function view, the following error occurs:

t = queryRecentYear(2023.06.01) => queryRecentYear: throw "Not granted to read data before " + start => Not granted to read data before 2023.06.28
t = queryFirst10Col(2023.01.01, 2023.12.31, ["SecurityID","date","time","col40","col50"]) => queryFirst10Col: throw "Not granted to read columns " + toStdJson(distinct(cols[notGranted])) => Not granted to read columns ["col50","col40"]

Cause:

• No permission to access the relevant rows or columns.

Solution:

• Modify the relevant parameters to access data within the accessible columns or rows.

t = queryRecentYear(startDate=2023.07.01)
t = queryFirst10Col(startDate=2023.01.01, endDate=2023.12.31, cols=`SecurityID`date`time`col5`col6`col7)
