Generate Real-Time Order Book Snapshots at User-Defined Frequencies with DolphinDB INSIGHT and the Order Book Engine

After the node starts, connect to it and run the installPlugin function in a GUI Clients such as the GUI, VS Code, or Web UI. This function downloads the INSIGHT plugin files compatible with the current server version, including the plugin description file and the plugin binary.

login("admin", "123456")
installPlugin("insight")

A successful return from the installPlugin function indicates that the plugin has been downloaded and installed. Its return value is the installation path of the plugin description file (PluginInsight.txt), for example:

/path_to_dolphindb_server/server/plugins/insight/PluginInsight.txt

The installPlugin function downloads the plugin files from a remote file server to the machine hosting the DolphinDB server, taking about one minute to complete.

Before calling any functions provided by the INSIGHT plugin, you must use the loadPlugin function to load it. The following example uses the plugin name as the input argument. Alternatively, you can specify the absolute path returned by installPlugin, for example: /path_to_dolphindb_server/server/plugins/insight/PluginInsight.txt.

loadPlugin("insight")

A successful return from the loadPlugin function indicates that the plugin has been loaded. In VS Code, for example, the first successful load returns the following partial information. The return value lists all functions provided by the INSIGHT plugin.

Note:

• After a node starts, the INSIGHT plugin can only be loaded once. Once loaded, the functions provided by the plugin can be called from any session connected to the node. If loadPlugin is executed again after the plugin has already been loaded, DolphinDB returns the following error:

The module [insight] is already in use.

To prevent this error from interrupting the execution of subsequent script code, you can catch the error with a try-catch statement:

try{ loadPlugin("Insight") }catch(ex){print ex}

• If the node is restarted, the plugin must be loaded again before it can be used.

Because streaming engines, stream tables, and subscriptions with the same names cannot be defined more than once, you must first cancel the relevant subscriptions and clear the stream tables and streaming engines required by the script before running it again. To ensure that the sample script in this tutorial can be run repeatedly, the following script is provided to clean up the streaming environment.

def cleanEnvironment(){
    try {
        tcpClient  = insight::getHandle()
        insight::unsubscribe(tcpClient)
        insight::close(tcpClient)
    } catch(ex) { print(ex) }
    for(channelno_ in 1..6){
        try { unsubscribeTable(tableName="orderTransactionTable" + string(channelno_), actionName="orderbookDemo" + string(channelno_)) } catch(ex) { print(ex) }
        try { unsubscribeTable(tableName="orderTransactionTable" + string(channelno_), actionName="orderbookDemo" + string(channelno_) + "etf") } catch(ex) { print(ex) }
        try { unsubscribeTable(tableName="orderTransactionTable" + string(channelno_), actionName="orderTransactionTableInsert" + string(channelno_)) } catch(ex) { print(ex) }
        try { unsubscribeTable(tableName="outputTable" + string(channelno_), actionName="outputTableInsert" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamEngine("orderbookEngine" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamEngine("orderbookEngine" + string(channelno_) + "etf") } catch(ex) { print(ex) }
        try { dropStreamTable("orderTransactionTable" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamTable("outputTable" + string(channelno_)) } catch(ex) { print(ex) }
    }
    for(channelno_ in 2011..2015){
        try { unsubscribeTable(tableName="orderTransactionTable" + string(channelno_), actionName="orderbookDemo" + string(channelno_)) } catch(ex) { print(ex) }
        try { unsubscribeTable(tableName="orderTransactionTable" + string(channelno_), actionName="orderTransactionTableInsert" + string(channelno_)) } catch(ex) { print(ex) }
        try { unsubscribeTable(tableName="outputTable" + string(channelno_), actionName="outputTableInsert" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamEngine("orderbookEngine" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamTable("orderTransactionTable" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamTable("outputTable" + string(channelno_)) } catch(ex) { print(ex) }
    }
	for(channelno_ in 2021..2025){
        try { unsubscribeTable(tableName="orderTransactionTable" + string(channelno_), actionName="orderbookDemo" + string(channelno_)) } catch(ex) { print(ex) }
        try { unsubscribeTable(tableName="orderTransactionTable" + string(channelno_), actionName="orderTransactionTableInsert" + string(channelno_)) } catch(ex) { print(ex) }
        try { unsubscribeTable(tableName="outputTable" + string(channelno_), actionName="outputTableInsert" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamEngine("orderbookEngine" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamTable("orderTransactionTable" + string(channelno_)) } catch(ex) { print(ex) }
        try { dropStreamTable("outputTable" + string(channelno_)) } catch(ex) { print(ex) }
    }
	undef all
}
cleanEnvironment()

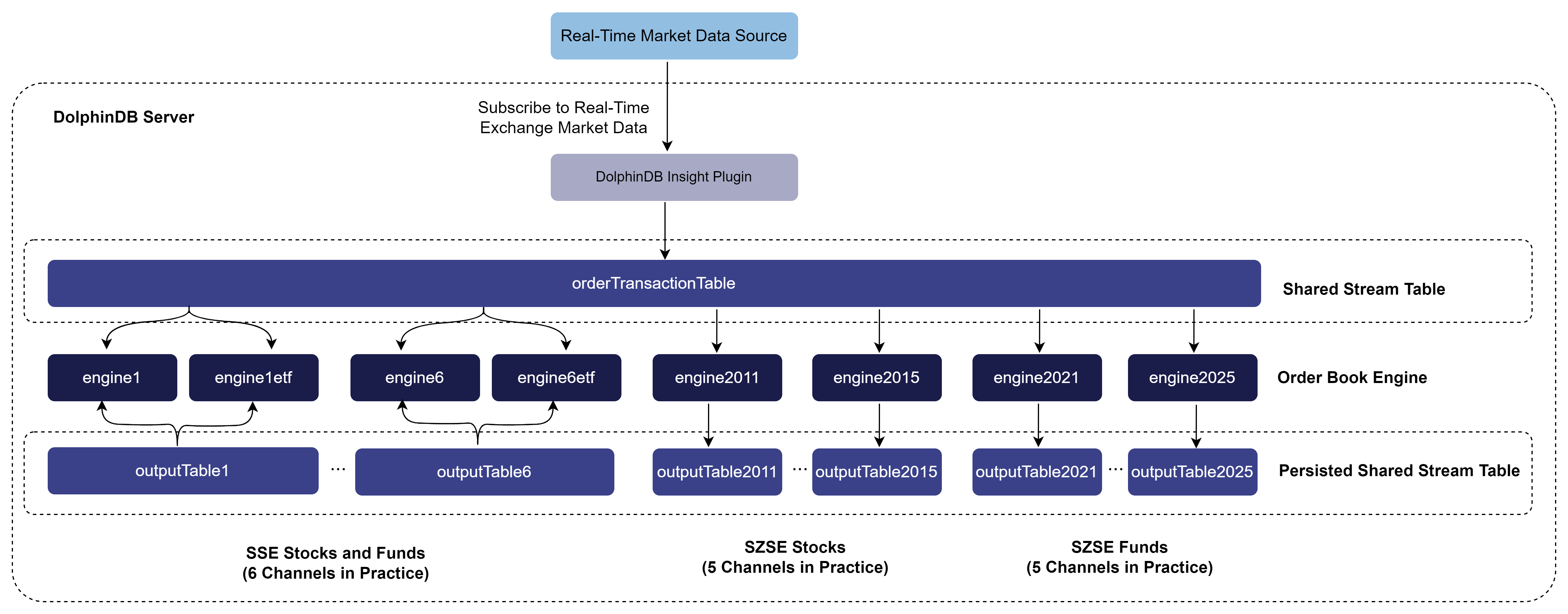

An order book engine should be created for each market data channel. Do not feed multiple channels into a single engine instance, as doing so may compromise the correctness of the generated results. For details about how the order book engine works and how to use it, see DolphinDB Order Book Engine: Build High-Frequency Order Books from Tick-by-Tick Data.

// Create order book engines
// Map the input table column names to the variables required by the order book engine for internal calculation
inputColMap = dict(`codeColumn`timeColumn`typeColumn`priceColumn`qtyColumn`buyOrderColumn`sellOrderColumn`sideColumn`msgTypeColumn`seqColumn, `SecurityID`MDTime`Type`Price`Qty`BuyNo`SellNo`BSFlag`SourceType`ApplSeqNum)
// Create a dictionary to define the previous day's closing prices, which will be passed to the prevClose parameter. prevClose does not affect any output columns other than the previous day's closing prices.
prevClose = dict(SYMBOL, DOUBLE)

// Define the engine to calculate and output 10-level bid and ask order books every 1 second
for(channelno_ in 1..6){
    createOrderBookSnapshotEngine(name="orderbookEngine" + string(channelno_), exchange="XSHG", orderbookDepth=10, intervalInMilli=1000, date=date(now()), startTime=09:30:00.000, prevClose=prevClose, dummyTable=objByName("orderTransactionTable" + string(channelno_)), inputColMap=inputColMap, outputTable=objByName("outputTable" + string(channelno_)), orderBySeq=true)
    createOrderBookSnapshotEngine(name="orderbookEngine" + string(channelno_) + "etf", exchange="XSHGFUND", orderbookDepth=10, intervalInMilli=1000, date=date(now()), startTime=09:30:00.000, prevClose=prevClose, dummyTable=objByName("orderTransactionTable" + string(channelno_)), inputColMap=inputColMap, outputTable=objByName("outputTable" + string(channelno_)), orderBySeq=true)
}

for(channelno_ in 2011..2015){
    createOrderBookSnapshotEngine(name="orderbookEngine" + string(channelno_), exchange="XSHE", orderbookDepth=10, intervalInMilli=1000, date=date(now()), startTime=09:30:00.000, prevClose=prevClose, dummyTable=objByName("orderTransactionTable" + string(channelno_)), inputColMap=inputColMap, outputTable=objByName("outputTable" + string(channelno_)), orderBySeq=true)
}

for(channelno_ in 2021..2025){
    createOrderBookSnapshotEngine(name="orderbookEngine" + string(channelno_), exchange="XSHEFUND", orderbookDepth=10, intervalInMilli=1000, date=date(now()), startTime=09:30:00.000, prevClose=prevClose, dummyTable=objByName("orderTransactionTable" + string(channelno_)), inputColMap=inputColMap, outputTable=objByName("outputTable" + string(channelno_)), orderBySeq=true)
}

• The exchange parameter specifies XSHG, XSHGFUND, XSHE, and XSHEFUND, which indicate SSE stocks, SSE funds, SZSE stocks, and SZSE funds, respectively.

• orderbookDepth specifies the order book depth. In this example, it is set to 10 levels.

• intervalInMilli specifies the output interval in milliseconds, which determines the order book frequency. In this example, it is set to 1000 (1 second).

• The inputColMap parameter specifies the mapping between fields in the engine input table and the key variables required for internal calculation.

• The prevClose parameter indicates the previous closing price. It is passed to the engine as static data and does not affect order book construction. However, it is included in the corresponding field of the output result. This example passes an empty dictionary as the previous closing price. In practice, you can obtain the previous closing price from historical data.

• Set orderBySeq=true because the INSIGHT TCP interface does not ensure that tick-by-tick data within a channel arrives ordered by seqColumn. If your data source delivers ordered data, set this to false.

The scripts above and in the appendix use a 10-level order book output at a 1-second frequency as an example, primarily to help you understand the complete workflow of real-time order book generation. Based on this foundation, you can implement more customized real-time outputs by making simple changes to the scripts for creating the engine in this section and the order book result table in Section 2.2, meeting the requirements for order books and derived metrics in different business scenarios. Next, we describe how to modify the scripts to meet different output requirements. Note that if you need to store the data in a DFS table, you must also modify the schema of the DFS database and tables accordingly. This topic is not discussed here.

You can optionally skip the following content for now and go directly to Section 2.4 to continue learning how to ingest INSIGHT market data into the order book engine in real time. After completing the basic real-time order book construction workflow in this tutorial, you can return to this section to explore advanced output customization options.

• Modify the Order Book Depth

createOrderBookSnapshotEngine(name="orderbookEngine" + string(channelno_), exchange="XSHE", orderbookDepth=20, intervalInMilli=1000, date=date(now()), startTime=09:30:00.000, prevClose=prevClose, dummyTable=objByName("orderTransactionTable" + string(channelno_)), inputColMap=inputColMap, outputTable=objByName("outputTable" + string(channelno_)), orderBySeq=true)

The order book depth is specified by the orderbookDepth parameter of the createOrderBookSnapshotEngine function. The code above changes the order book depth to 20 levels. Because the example scripts in this tutorial do not use array vectors to store market depth data, if you change the depth output by the order book engine, you must also modify the schema of the result stream table in Section 2.2 accordingly. The following statement creates a 20-level order book table; set the depth variable to 20.

depth = 20
suffix = string(1..depth)
colNames = `SecurityID`timestamp`lastAppSeqNum`tradingPhaseCode`modified`turnover`volume`tradeNum`totalTurnover`totalVolume`totalTradeNum`lastPx`highPx`lowPx`ask`bid`askVol`bidVol`preClosePx`invalid  join ("bids" + suffix) join ("bidVolumes" + suffix) join ("bidOrderNums" + suffix) join ("asks" + suffix)  join ("askVolumes" + suffix) join ("askOrderNums" + suffix)
colTypes = [SYMBOL,TIMESTAMP,LONG,INT,BOOL,DOUBLE,LONG,INT,DOUBLE,LONG,INT,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,LONG,LONG,DOUBLE,BOOL] join take(DOUBLE, depth) join take(LONG, depth) join take(INT, depth) join take(DOUBLE, depth) join take(LONG, depth) join take(INT, depth)

• Modify the Order Book Frequency

createOrderBookSnapshotEngine(name="orderbookEngine" + string(channelno_), exchange="XSHE", orderbookDepth=10, intervalInMilli=500, date=date(now()), startTime=09:30:00.000, prevClose=prevClose, dummyTable=objByName("orderTransactionTable" + string(channelno_)), inputColMap=inputColMap, outputTable=objByName("outputTable" + string(channelno_)), orderBySeq=true)

The order book frequency is specified by the intervalInMilli parameter of the createOrderBookSnapshotEngine function. The code above changes the order book frequency to 500 milliseconds. Changing the order book frequency does not affect the output table schema. Therefore, there is no need to modify the table definition in Section 2.2. This change only impacts the volume of generated output data.

• Output Derived Metrics

depth = 10
orderBookAsArray = true
outputColMap = genOutputColumnsForOBSnapshotEngine(basic=true, time=true, depth=(depth, orderBookAsArray), tradeDetail=true, orderDetail=false, withdrawDetail=false, orderBookDetailDepth=0, prevDetail=false)[0]
createOrderBookSnapshotEngine(name="orderbookEngine" + string(channelno_), exchange="XSHE", orderbookDepth=depth, intervalInMilli=1000, date=date(now()), startTime=09:30:00.000,  prevClose=prevClose, dummyTable=objByName("orderTransactionTable" + string(channelno_)), inputColMap=inputColMap, outputTable=objByName("outputTable" + string(channelno_)), orderBySeq=true, outputColMap=outputColMap, orderBookAsArray=orderBookAsArray)

When creating the engine, you can use the outputColMap parameter to select the fields to output. For all metric fields that the engine can output, see the createOrderBookSnapshotEngine appendix. The order book created by the script above calculates and outputs 10-level market depth data for SZSE stocks every 1 second. It also includes extended tick-by-tick trade detail fields and stores the 10-level market depth data in array vectors.

To facilitate field selection, DolphinDB provides the function genOutputColumnsForOBSnapshotEngine, which returns both the required output fields and the corresponding output table schema. The parameters of the genOutputColumnsForOBSnapshotEngine function specify the fields to be output by the order book engine. In this section, basic, time, depth, and tradeDetail are set to true, while all other parameters are set to false. This means that only basic trade information, time, order book, and trade detail fields are required.

Note that if you use the outputColMap parameter to select derived metrics for output, you should modify the schema of the result stream table in Section 2.2 accordingly.

depth = 10
orderBookAsArray = true
outputTableSch = genOutputColumnsForOBSnapshotEngine(basic=true, time=true, depth=(depth, orderBookAsArray), tradeDetail=true, orderDetail=false, withdrawDetail=false, orderBookDetailDepth=0, prevDetail=false)[1]
colNames = outputTableSch.schema().colDefs.name
colTypes = outputTableSch.schema().colDefs.typeString

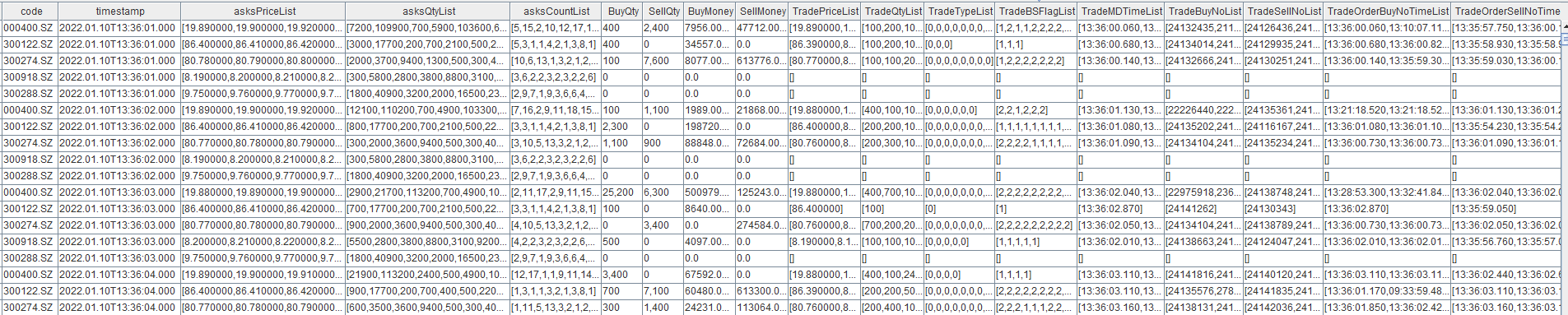

The output, which includes tick-by-tick trade details, is shown below. Tick-by-tick trade details refer to all trade data between two order book snapshots, stored as array vectors, including metrics such as trading volume, trade price, and trade direction. By default, derived indicators are appended as the last several columns in the output table. In the figure below, the column order has been rearranged for presentation purposes to improve readability.

• Output User-Defined Metrics

depth = 10
orderBookAsArray =true
outputColMap = genOutputColumnsForOBSnapshotEngine(basic=true, time=false, depth=(depth, orderBookAsArray), tradeDetail=true, orderDetail=false, withdrawDetail=true, orderBookDetailDepth=0, prevDetail=false)[0]
// User-defined factors
def userDefinedFunc(t){
        AvgBuyDuration = rowAvg(t.TradeMDTimeList-t.TradeOrderBuyNoTimeList).int()
        AvgSellDuration = rowAvg(t.TradeMDTimeList-t.TradeOrderSellNoTimeList).int()
        BuyWithdrawQty = rowSum(t.WithdrawBuyQtyList)
        SellWithdrawQty = rowSum(t.WithdrawSellQtyList)
        return (AvgBuyDuration, AvgSellDuration, BuyWithdrawQty, SellWithdrawQty)
}
createOrderBookSnapshotEngine(name="orderbookEngine" + string(channelno_), exchange="XSHE", orderbookDepth=depth, intervalInMilli=1000, date=date(now()), startTime=09:30:00.000,  prevClose=prevClose, dummyTable=objByName("orderTransactionTable" + string(channelno_)), inputColMap=inputColMap, outputTable=objByName("outputTable" + string(channelno_)), orderBySeq=true, outputColMap=outputColMap, orderBookAsArray=orderBookAsArray, userDefinedMetrics=userDefinedFunc)

When creating the engine, specify the userDefinedMetrics parameter to make the engine output user-defined metrics. The order book created by the script above calculates and outputs 10-level order books for SZSE stocks every 1 second, and extends the output with four user-defined metrics. The metrics are defined as follows:

The userDefinedMetrics parameter is a unary function that defines the calculation logic for user-defined metrics. The input to this function must be a table, where each row represents a single instrument snapshot, and each column corresponds to a built-in engine metric defined in outputColMap. You can use these built-in metrics to derive user-defined metrics. Here, the tick-by-tick trade details and cancellation details between two order book snapshots provided by the engine are used to calculate metrics within this window, such as order duration and cancellation volume.

When the userDefinedMetrics parameter is specified, the output schema of the engine no longer corresponds one-to-one with the fields defined in outputColMap. Instead, it contains only two parts: the basic and depth metrics corresponding to the genOutputColumnsForOBSnapshotEngine function, and the user-defined metrics. Accordingly, the schema of the result stream table described in Section 2.2 must be updated to reflect this change.

depth = 10
orderBookAsArray =true
outputTableSch = genOutputColumnsForOBSnapshotEngine(basic=true, time=false, depth=(depth, orderBookAsArray), tradeDetail=false, orderDetail=false, withdrawDetail=false, orderBookDetailDepth=0, prevDetail=false)[1]
colNames = outputTableSch.schema().colDefs.name join (`AvgBuyDuration`AvgSellDuration`BuyWithdrawQty`SellWithdrawQty)
colTypes = outputTableSch.schema().colDefs.typeString join (`INT`INT`INT`INT)

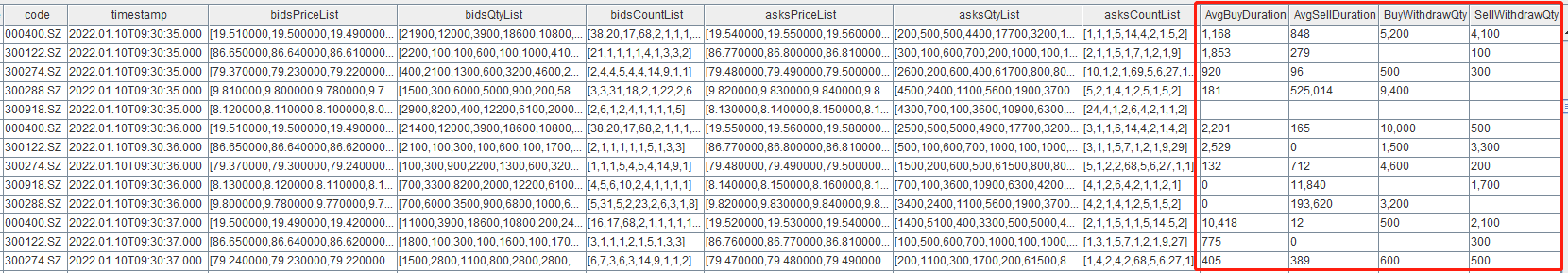

The output that includes user-defined metrics is shown below. The red box highlights the user-defined metrics. By default, user-defined metrics are appended to the last several columns of the output table. In the figure, the column order has been rearranged for presentation clarity.

Subscribe to the stream table that receives INSIGHT market data in Section 2.2, and write incremental data to the order book engine in real time. The engine outputs snapshots to the result stream table in real time.

subscribeTable(tableName="orderTransactionTable1", actionName="orderbookDemo1", handler=getStreamEngine("orderbookEngine1"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=0)
subscribeTable(tableName="orderTransactionTable2", actionName="orderbookDemo2", handler=getStreamEngine("orderbookEngine2"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=1)
subscribeTable(tableName="orderTransactionTable3", actionName="orderbookDemo3", handler=getStreamEngine("orderbookEngine3"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=2)
subscribeTable(tableName="orderTransactionTable4", actionName="orderbookDemo4", handler=getStreamEngine("orderbookEngine4"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=3)
subscribeTable(tableName="orderTransactionTable5", actionName="orderbookDemo5", handler=getStreamEngine("orderbookEngine5"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=4)
subscribeTable(tableName="orderTransactionTable6", actionName="orderbookDemo6", handler=getStreamEngine("orderbookEngine6"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=5)

subscribeTable(tableName="orderTransactionTable1", actionName="orderbookDemo1etf", handler=getStreamEngine("orderbookEngine1etf"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=0)
subscribeTable(tableName="orderTransactionTable2", actionName="orderbookDemo2etf", handler=getStreamEngine("orderbookEngine2etf"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=1)
subscribeTable(tableName="orderTransactionTable3", actionName="orderbookDemo3etf", handler=getStreamEngine("orderbookEngine3etf"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=2)
subscribeTable(tableName="orderTransactionTable4", actionName="orderbookDemo4etf", handler=getStreamEngine("orderbookEngine4etf"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=3)
subscribeTable(tableName="orderTransactionTable5", actionName="orderbookDemo5etf", handler=getStreamEngine("orderbookEngine5etf"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=4)
subscribeTable(tableName="orderTransactionTable6", actionName="orderbookDemo6etf", handler=getStreamEngine("orderbookEngine6etf"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=5)

subscribeTable(tableName="orderTransactionTable2011", actionName="orderbookDemo2011", handler=getStreamEngine("orderbookEngine2011"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=6)
subscribeTable(tableName="orderTransactionTable2012", actionName="orderbookDemo2012", handler=getStreamEngine("orderbookEngine2012"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=7)
subscribeTable(tableName="orderTransactionTable2013", actionName="orderbookDemo2013", handler=getStreamEngine("orderbookEngine2013"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=8)
subscribeTable(tableName="orderTransactionTable2014", actionName="orderbookDemo2014", handler=getStreamEngine("orderbookEngine2014"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=9)
subscribeTable(tableName="orderTransactionTable2015", actionName="orderbookDemo2015", handler=getStreamEngine("orderbookEngine2015"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=10)

subscribeTable(tableName="orderTransactionTable2021", actionName="orderbookDemo2021", handler=getStreamEngine("orderbookEngine2021"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=6)
subscribeTable(tableName="orderTransactionTable2022", actionName="orderbookDemo2022", handler=getStreamEngine("orderbookEngine2022"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=7)
subscribeTable(tableName="orderTransactionTable2023", actionName="orderbookDemo2023", handler=getStreamEngine("orderbookEngine2023"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=8)
subscribeTable(tableName="orderTransactionTable2024", actionName="orderbookDemo2024", handler=getStreamEngine("orderbookEngine2024"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=9)
subscribeTable(tableName="orderTransactionTable2025", actionName="orderbookDemo2025", handler=getStreamEngine("orderbookEngine2025"), msgAsTable=true, batchSize=1, throttle=0.001, reconnect=true, hash=10)

• You can control how frequently data is written to the DFS database by changing the subscribeTable function's batchSize and throttle parameters.

  • batchSize =1 and throttle =0.001 indicate that data inserted into the stream table is processed immediately.

  • hash specifies the background worker thread that processes streaming data. To improve CPU utilization and workload distribution, different subscription tasks can be assigned to different threads during subscription setup.

During runtime, the status of INSIGHT market data ingestion can be monitored. First call the insight::getHandle function to obtain the connection handle, and then use insight::getStatus to query the reception status of INSIGHT market data.

tcpClient = insight::getHandle()
insight::getStatus(tcpClient)

Before running the database creation statements, log in with an account that has the required creation permissions. Run the following code to log in to the default administrator account:

login("admin", "123456")

To store market data and generated snapshots in a DFS database, tables should be created according to the schema obtained from previous sections. The partitioning strategy follows Best Practices for Financial Data Storage. In this example, SSE and SZSE data are stored in two separate databases.

if(!existsDatabase("dfs://SZ_TB")) {
	// Create a DFS database
	dbDate = database(, partitionType=VALUE, partitionScheme=2023.01.01..2024.01.01)
	dbID = database(, partitionType=HASH, partitionScheme=[SYMBOL, 25])
	db = database(directory="dfs://SZ_TB", partitionType=COMPO, partitionScheme=[dbDate, dbID],engine='TSDB',atomic='CHUNK')
}

if(!existsDatabase("dfs://SH_TB")) {
	// Create a DFS database
	dbDate = database(, partitionType=VALUE, partitionScheme=2023.01.01..2024.01.01)
	dbID = database(, partitionType=HASH, partitionScheme=[SYMBOL, 25])
	db = database(directory="dfs://SH_TB", partitionType=COMPO, partitionScheme=[dbDate, dbID],engine='TSDB',atomic='CHUNK')
}

if(!existsTable("dfs://SZ_TB", "orderTransactionTable")) {
	db = database("dfs://SZ_TB")
	// Create a DFS table to store market data
	colName = `SecurityID`MDDate`MDTime`SecurityIDSource`SecurityType`Index`SourceType`Type`Price`Qty`BSFlag`BuyNo`SellNo`ApplSeqNum`ChannelNo`receivedTime
	colType = [SYMBOL,DATE,TIME,SYMBOL,SYMBOL,LONG,INT,INT,LONG,LONG,INT,LONG,LONG,LONG,INT,NANOTIMESTAMP]
	tbSchema = table(1:0, colName, colType)
	db.createPartitionedTable(table=tbSchema,tableName="orderTransactionTable",partitionColumns=`MDDate`SecurityID,sortColumns=`SecurityID`MDTime)
}

if(!existsTable("dfs://SH_TB", "orderTransactionTable")) {
	db = database("dfs://SH_TB")
	// Create a DFS table to store market data
	colName = `SecurityID`MDDate`MDTime`SecurityIDSource`SecurityType`Index`SourceType`Type`Price`Qty`BSFlag`BuyNo`SellNo`ApplSeqNum`ChannelNo`receivedTime
	colType = [SYMBOL,DATE,TIME,SYMBOL,SYMBOL,LONG,INT,INT,LONG,LONG,INT,LONG,LONG,LONG,INT,NANOTIMESTAMP]
	tbSchema = table(1:0, colName, colType)
	db.createPartitionedTable(table=tbSchema,tableName="orderTransactionTable",partitionColumns=`MDDate`SecurityID,sortColumns=`SecurityID`MDTime)
}

if(!existsTable("dfs://SZ_TB", "tick1sTable")) {
	db = database("dfs://SZ_TB")
	// Create a DFS table to store generated snapshot data
	depth = 10
	suffix = string(1..depth)
	colName = `SecurityID`timestamp`lastAppSeqNum`tradingPhaseCode`modified`turnover`volume`tradeNum`totalTurnover`totalVolume`totalTradeNum`lastPx`highPx`lowPx`ask`bid`askVol`bidVol`preClosePx`invalid  join ("bids" + suffix) join ("bidVolumes" + suffix) join ("bidOrderNums" + suffix) join ("asks" + suffix)  join ("askVolumes" + suffix) join ("askOrderNums" + suffix)
	colType = [SYMBOL,TIMESTAMP,LONG,INT,BOOL,DOUBLE,LONG,INT,DOUBLE,LONG,INT,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,LONG,LONG,DOUBLE,BOOL] join take(DOUBLE, depth) join take(LONG, depth) join take(INT, depth) join take(DOUBLE, depth) join take(LONG, depth) join take(INT, depth)
	tbSchema = table(1:0, colName, colType)
	db.createPartitionedTable(table=tbSchema,tableName="tick1sTable",partitionColumns=`timestamp`SecurityID,sortColumns=`SecurityID`timestamp)
}

if(!existsTable("dfs://SH_TB", "tick1sTable")) {
	db = database("dfs://SH_TB")
	// Create a DFS table to store generated snapshot data
	depth = 10
	suffix = string(1..depth)
	colName = `SecurityID`timestamp`lastAppSeqNum`tradingPhaseCode`modified`turnover`volume`tradeNum`totalTurnover`totalVolume`totalTradeNum`lastPx`highPx`lowPx`ask`bid`askVol`bidVol`preClosePx`invalid  join ("bids" + suffix) join ("bidVolumes" + suffix) join ("bidOrderNums" + suffix) join ("asks" + suffix)  join ("askVolumes" + suffix) join ("askOrderNums" + suffix)
	colType = [SYMBOL,TIMESTAMP,LONG,INT,BOOL,DOUBLE,LONG,INT,DOUBLE,LONG,INT,DOUBLE,DOUBLE,DOUBLE,DOUBLE,DOUBLE,LONG,LONG,DOUBLE,BOOL] join take(DOUBLE, depth) join take(LONG, depth) join take(INT, depth) join take(DOUBLE, depth) join take(LONG, depth) join take(INT, depth)
	tbSchema = table(1:0, colName, colType)
	db.createPartitionedTable(table=tbSchema,tableName="tick1sTable",partitionColumns=`timestamp`SecurityID,sortColumns=`SecurityID`timestamp)
}

Tick-by-tick data is stored in a shared stream table, which remains fully in memory during runtime. Therefore, the complete dataset can be directly accessed for batch writing. In contrast, order book snapshot data is stored in persisted stream tables, where part of the data may already have been flushed to disk. As a result, snapshot data is written into the DFS database incrementally via subscription-based ingestion. The following example script demonstrates the batch writing process. When the log output shows All data has been written to the dfs database., all intraday data has been successfully persisted to the DFS database.

SZ_orderTransaction = loadTable("dfs://SZ_TB", "orderTransactionTable")
SZ_output = loadTable("dfs://SZ_TB", "tick1sTable")
SH_orderTransaction = loadTable("dfs://SH_TB", "orderTransactionTable")
SH_output = loadTable("dfs://SH_TB", "tick1sTable")

for(channelno_ in 1..6){
    SH_orderTransaction.append!(objByName(`orderTransactionTable + string(channelno_)))
}

for(channelno_ in 2011..2015){
    SZ_orderTransaction.append!(objByName(`orderTransactionTable + string(channelno_)))
}

for(channelno_ in 2021..2025){
    SZ_orderTransaction.append!(objByName(`orderTransactionTable + string(channelno_)))
}

for(channelno_ in 1..6){
    subscribeTable(tableName="outputTable" + string(channelno_), actionName="outputTableInsert" + string(channelno_), offset=0, handler=tableInsert{SH_output}, msgAsTable=true, batchSize=20000, throttle=5, reconnect=true, hash=13)
}

for(channelno_ in 2011..2015){
    subscribeTable(tableName="outputTable" + string(channelno_), actionName="outputTableInsert" + string(channelno_), offset=0, handler=tableInsert{SZ_output}, msgAsTable=true, batchSize=20000, throttle=5, reconnect=true, hash=14)
}

for(channelno_ in 2021..2025){
    subscribeTable(tableName="outputTable" + string(channelno_), actionName="outputTableInsert" + string(channelno_), offset=0, handler=tableInsert{SZ_output}, msgAsTable=true, batchSize=20000, throttle=5, reconnect=true, hash=15)
}

SH_Count = exec count(*) from SH_output where date(timestamp) = date(now())
SZ_Count = exec count(*) from SZ_output where date(timestamp) = date(now())

SH_Total_Count = 0
SZ_Total_Count = 0
for(channelno_ in 1..6){
    SH_Total_Count += getPersistenceMeta(objByName(`outputTable + string(channelno_)))[`totalSize]
}

for(channelno_ in 2011..2015){
    SZ_Total_Count += getPersistenceMeta(objByName(`outputTable + string(channelno_)))[`totalSize]
}

for(channelno_ in 2021..2025){
    SZ_Total_Count += getPersistenceMeta(objByName(`outputTable + string(channelno_)))[`totalSize]
}

do{
    SH_Count = exec count(*) from SH_output where date(timestamp) = date(now())
    SZ_Count = exec count(*) from SZ_output where date(timestamp) = date(now())
}while(SH_Count != SH_Total_Count || SZ_Count != SZ_Total_Count)
